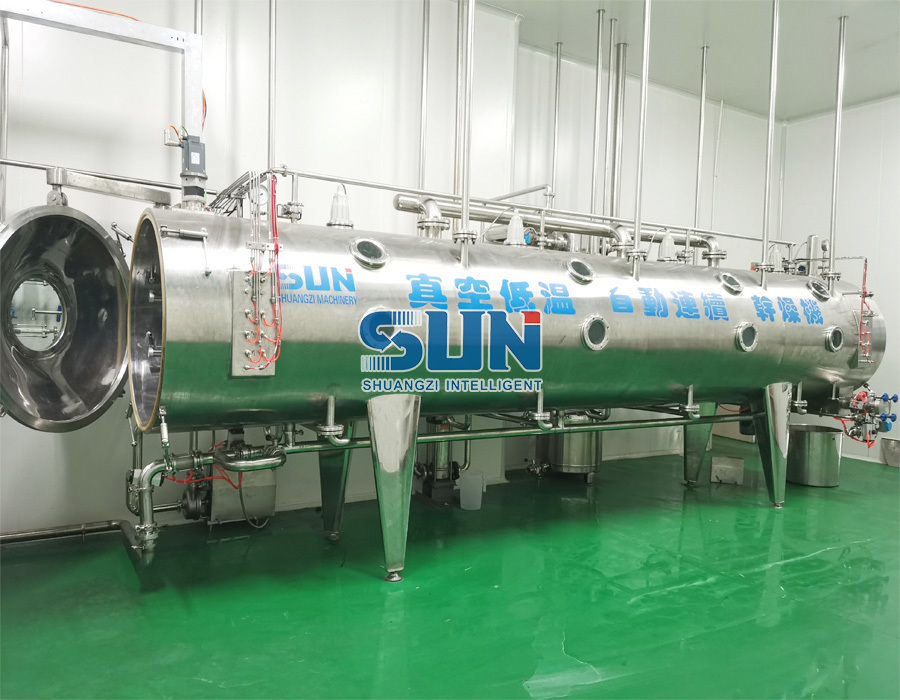

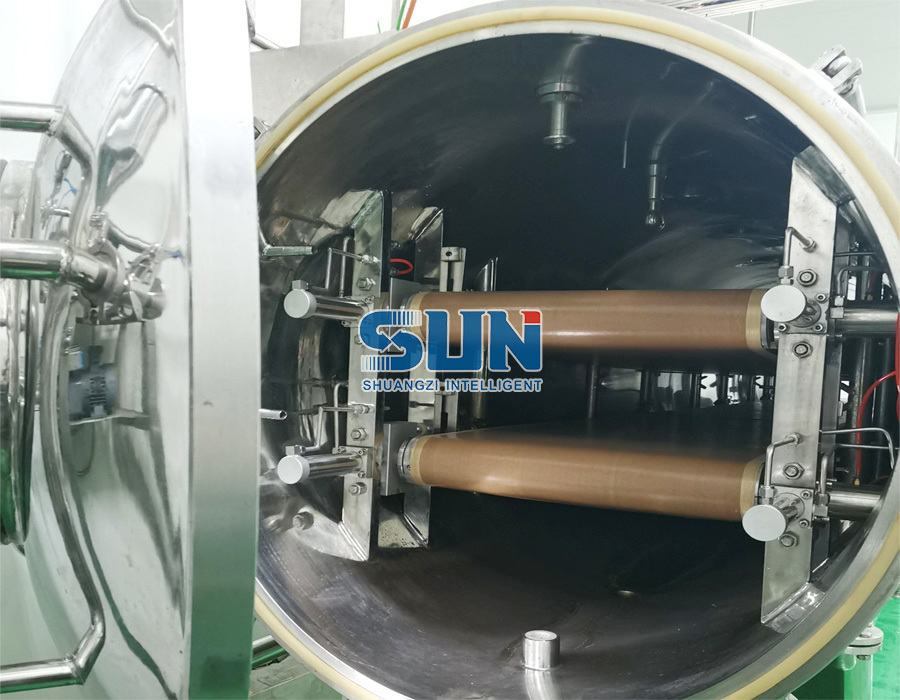

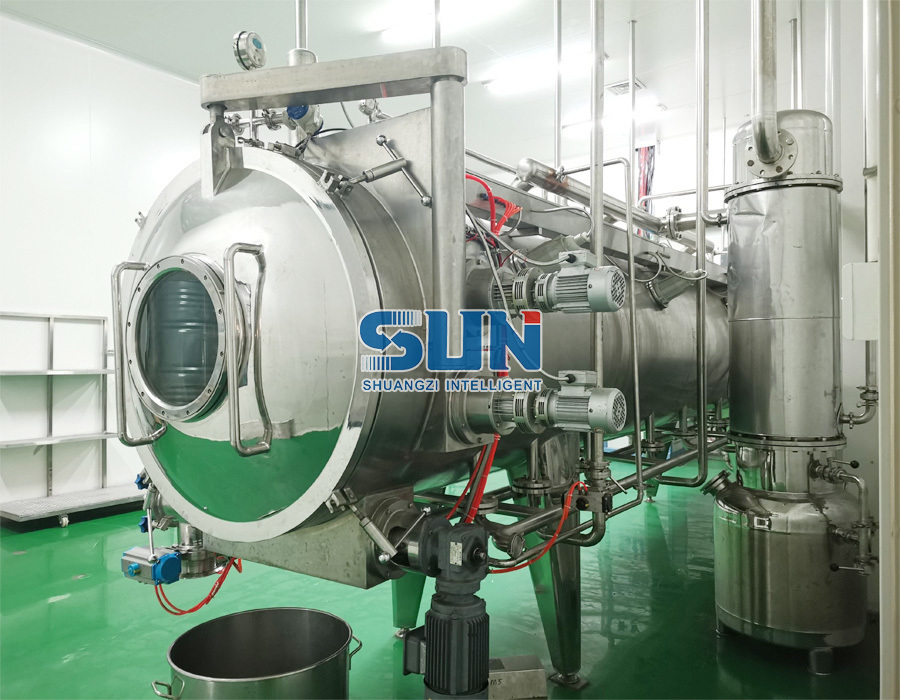

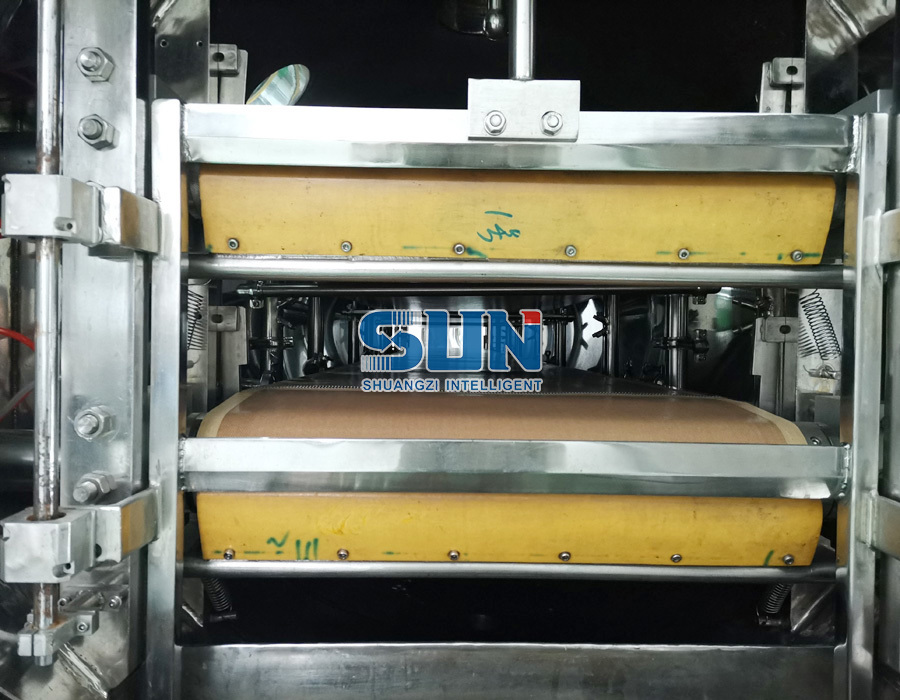

Name: Laboratory Fully Automatic Vacuum Low-temperature Crawler Belt Dryer
Rating: 5 (99 reviews)

Application Range:
Mainly suitable for low-temperature drying of various liquid paste like raw materials such as Chinese and Western medicine, food, bioengineering, chemical raw materials, health products, food additives, etc., especially for materials with high viscosity, easy agglomeration, thermoplasticity, and heat sensitivity;For materials that are not suitable for or cannot be dried by spray, vacuum low-temperature continuous dryer is the best choice.
The details are as follows:
Pharmaceutical and biological industries: such as traditional Chinese medicine extracts, plant extracts, egg embryo drying treatment, PVPK series adhesives, fermentation broth, etc.
Food and health industry: such as malt,oligosaccharides,instant solid drinks,tea powder,Cocoa solids,corn syrup,vegetable protein, spices, etc.
Fine chemical industry: such as lithium battery raw materials, carbaryl salts, etc.
Phosphorus chemical and polyester industries.
Experiment example:
Milk powder
Food additives
White sugar

Parameters for Laboratory Fully Automatic Vacuum Low-temperature Crawler Belt Dryer:

Bask: parameters	Specification and model (Liquid drying)
Bask: parameters	SUNZDG-01-1	SUNZDG-02-5	SUNZDG-02-10	SUNZDG-03-15	SUNZDG-O4-25	SUNZDG-M-40	SUNZDG-05-60
Total heat transfer arealm2)	1.6	6.1	10.6	16.4	26.6	40.5	65
Effective heating area(m')	1.2	4.8	7.6	11.8	19.8	30.4	50.7
Effective cooling arealm2)	0.14	0.8	1.45	2.25	3	5.6	7.2
Condensing area(m2)	2.5	10	14	16	18	21	30
Water evaporation] kg/h)	1.0-1.7	4.0-7.0	6.0-11	10.0-17	17-27	25-42	45-65
Belt width(mm)	450	625	775	800	800	1050	1050
Belt layers	1	2	2	3	4	4	5
Equipment diameter(mm)	700	1000	1200	1400	1600	1800	2000
Equipment length(mm)	4500	6000	7500	7500	9000	10500	13500
Heating and cooling sections	3 heatir>g+l cooling	3 heatir>g+l cooling	3 heatir>g+l cooling	3 heatir>g+l cooling	3 heatir>g+l cooling	4 heatir>g+l cooling	4 heatir>g+l cooling
Heating form	Electric heatir>g/Super heated water	Superheated water	Superheated water	Superheated water	Superheated water	Superheated water	Superheated water
Steam consumption(kg/h)	/	6.G-11.0	9.0-16	16.0-25	26-40	现63	70-100
Heating control temperaturefC )	40-125	40-125	40-125	40-125	40-125	40-125	40-125
Belt speed)mm/min)	25-550	25-550	45-880	45-880	60-1000	60-1000	60-1000
Feed water content%	<40	<40	<40	<40	<40	<40	<40
Product water content%	<4	<4	<4	<4	<4	<4	<4
Cleaning pressure MPa	0.6	0.6	0.6	0.6	0.6	0.6	0.6
Compressed air MPa	0.7	0.7	0.7	0.7	0.7	0.7	0.7
Vacuum degree range(Pa)	9104400	9104400	9104400	9104400	9104400	9104400	1240-4800
Total installed power(kw)	46(8)	15	20	28	36	40	55
Cooling water consumption <25cC(t/h)	1	2.5	3	5	10	12	15
Total weight(t)	Main body:2.0 Auxiliary part:12	Main body:3.5 Auxiliary part:1.8	Main body:4.5 Auxiliary part:2.2	Main body:6.0 Auxiliary part:3.0	Main body: 12.0 Auxiliary partA.O	Main body:16.5 Auxiliary part:45	Main body:22.5 Auxiliary part7.0
