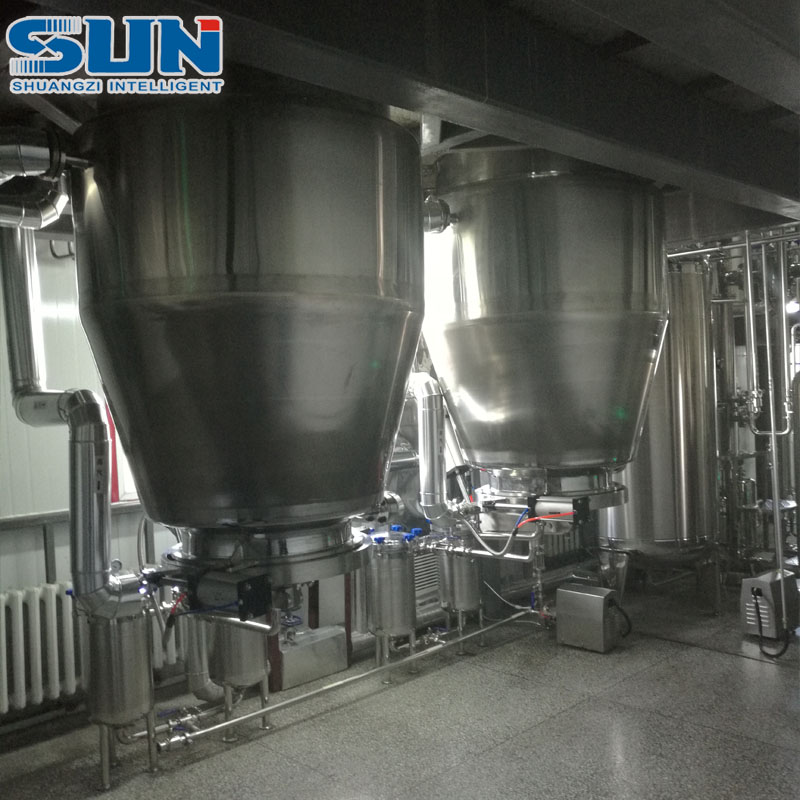

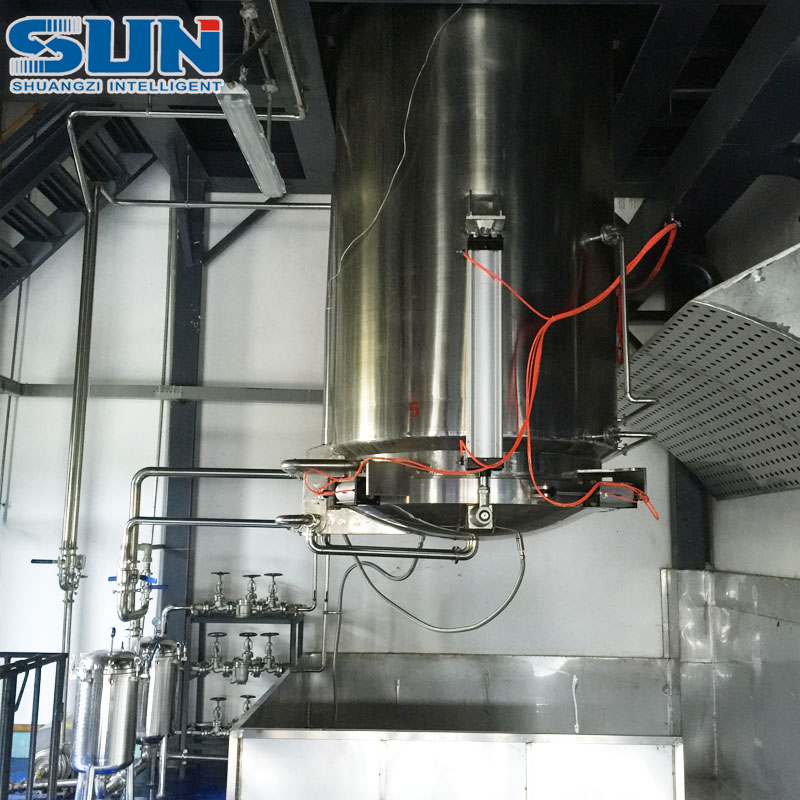

Multifunctional Extraction Tank
Multifunctional Extraction Tank

Multifunctional Extraction Tank

Multifunctional extraction tank usage:
Multifunctional extraction tank is a multi-purpose equipment designed for Chinese medicine factory, boiling and lifting processes, in this process to extract, alcohol recovery, volatile oil separation and other processes. It is especially suitable for the extraction of components contained in plant products. The multi-functional extraction tank can provide water extraction, alcohol extraction, volatile oil extraction and solvent recovery in the residue, and can also be used for percolation, warm leaching, reflux, circulation impregnation, pressure or pressure leaching and other leaching processes. It has the advantages of high extraction efficiency, short extraction time, high liquid content and easy operation.

Multifunctional extraction tank structure:

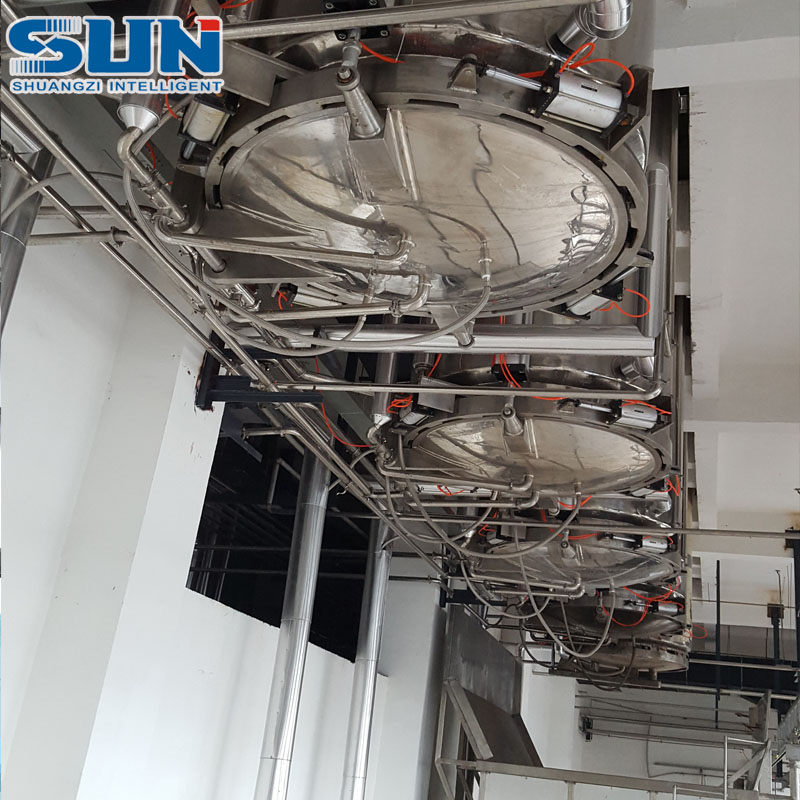

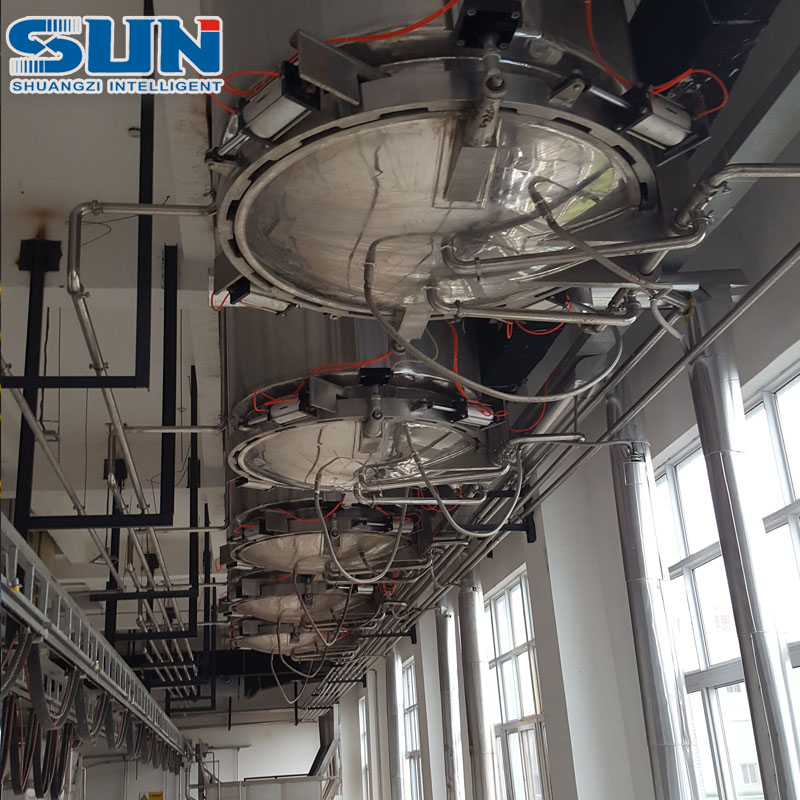

The main body of the extraction tank includes an inner cylinder body, a jacket layer, a thermal insulation layer, a stirring device, a support ear, a pneumatic slagging door, a pneumatic operating table, etc. The extraction tank insulation layer is made of rock wool as insulation material.



Items

TD-Z-1.0

TD-Z-2.0

TD-Z-3.0

TD-Z-6.0

TD-Z-8.0

TD-Z-10

Capacity

1200

2300

3200

6300

8500

11000

Inner Tank Design Pressure (Mpa)

0.09

Jacket Design Pressure (Mpa)

0.3

Compressed Air Pressure (Mpa)

0.6-0.7

Product In Dia (mm)

400

400

400

500

500

500

Heating Area (m2)

3.0

4.7

6.0

7.5

9.5

12

Condensing Area (m2)

4

4

5

5

8

10

Cooling Area (m2)

1

1

1

2

2

3

Filter Area (m2)

3

3

3

5

5

6

Slag Discharge Dia (m2)

800

800

800

1000

1000

1000

Steam Consumption (kg/h)

245

325

345

645

720

850
