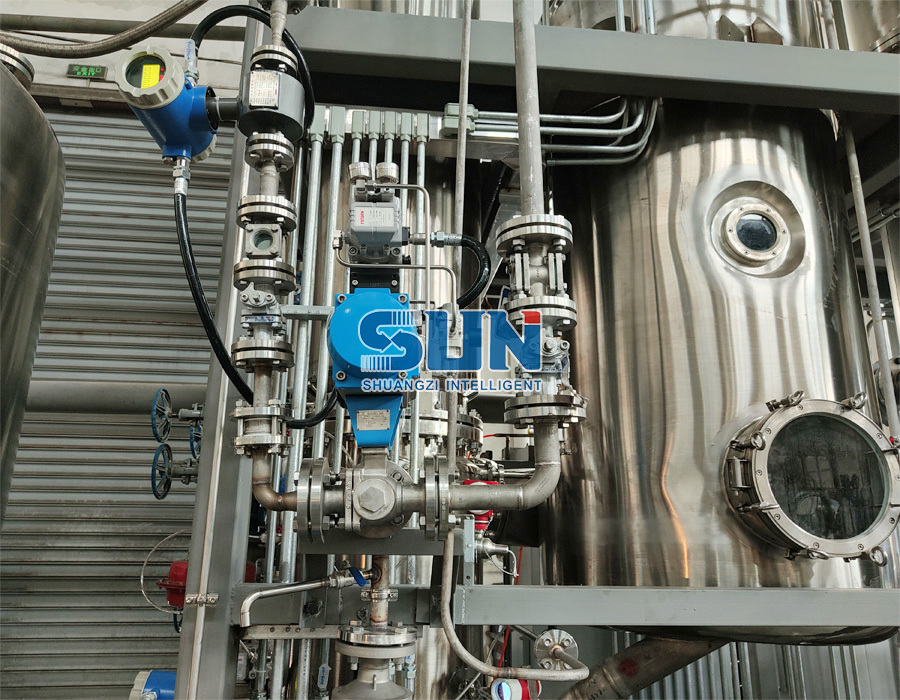

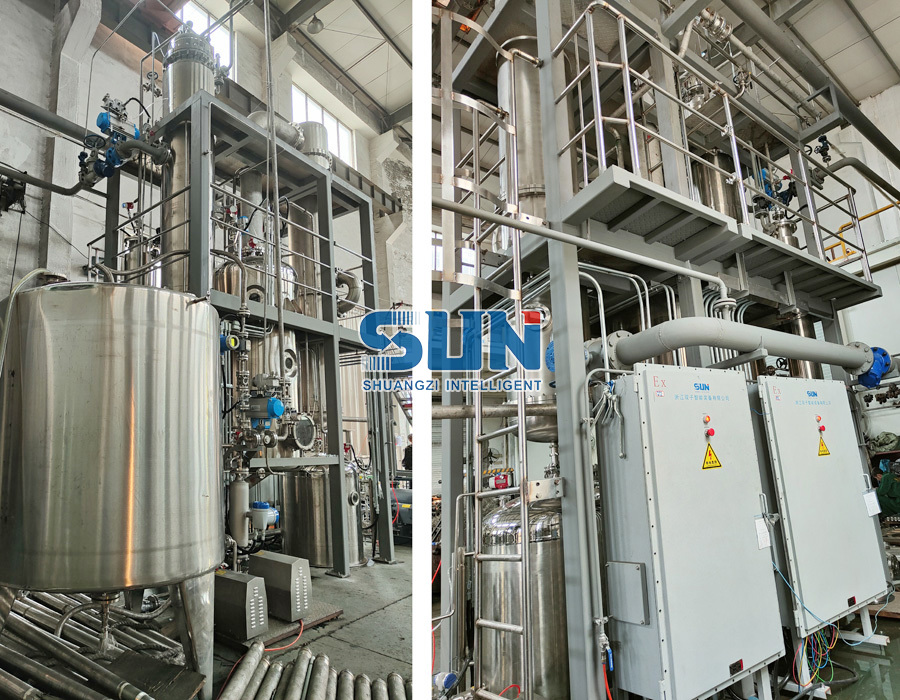

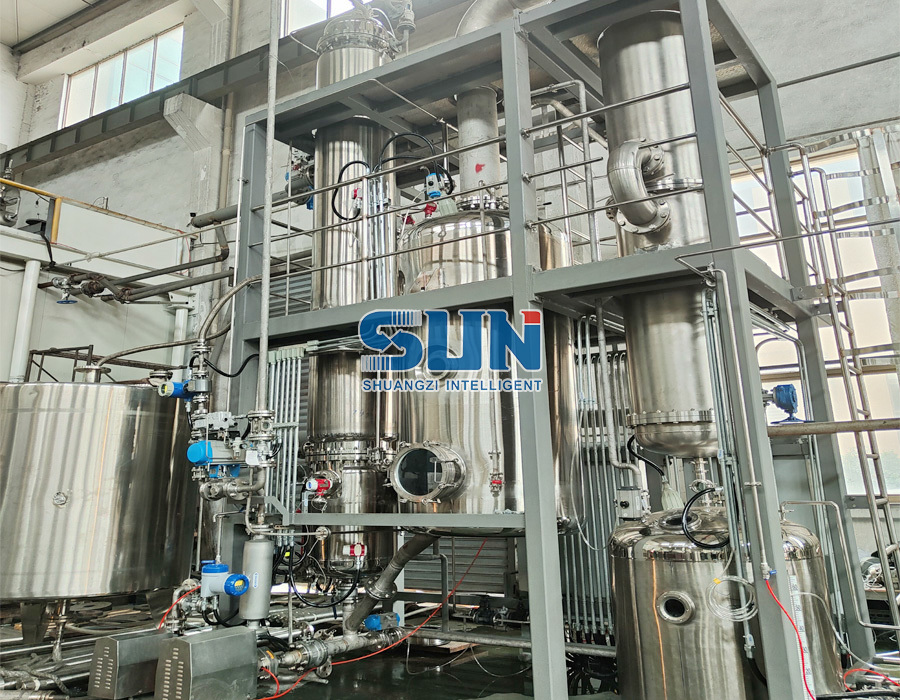

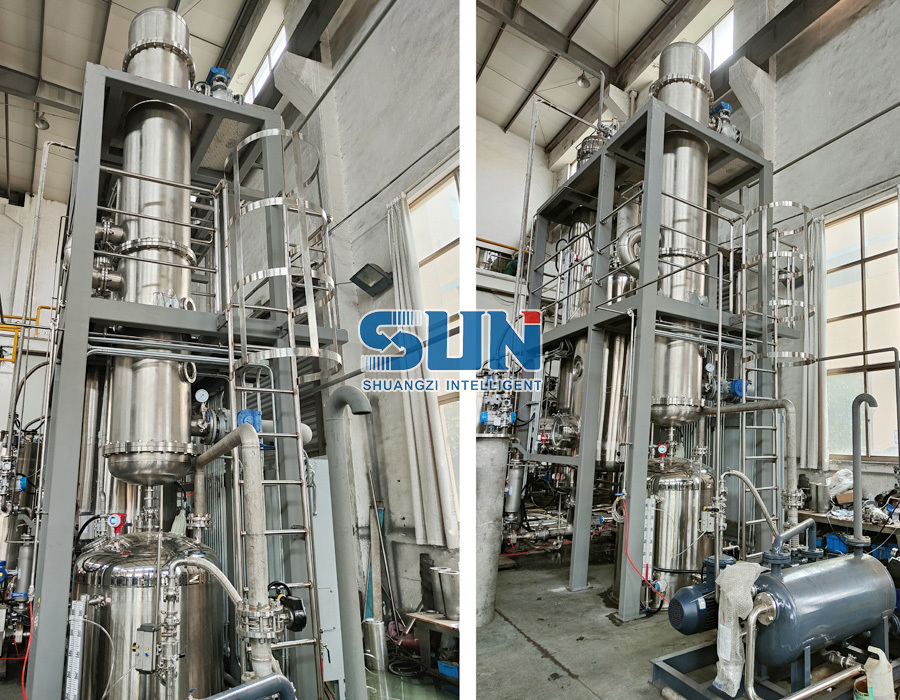

Single Effect Falling Film Evaporator Vacuum Concentration Equipment
Single Effect Falling Film Evaporator Vacuum Concentration Equipment
Single Effect Falling Film Evaporator Vacuum Concentration Equipment
Single Effect Falling Film Evaporator Vacuum Concentration Equipment
Single Effect Falling Film Evaporator Vacuum Concentration Equipment

Single Effect Falling Film Evaporator Vacuum Concentration Equipment

Product Description:
The heating chamber of single effect falling film evaporator is different from ordinary evaporation equipment. It consists of multiple vertically discharged tubes, and the material flows rapidly from the tubes during operation. Suitable for low-temperature evaporation of liquids in industries such as food, chemical, pharmaceutical, milk, glucose, starch, xylitol, and biological environment. The materials are continuously in and out, with short heating time and low evaporation temperature. The liquid in the equipment can reach the required color concentration through one pass. The flavor and nutrition of this product are very small, making it particularly suitable for the evaporation of thermosensitive materials such as milk.

Working principle:
A single effect falling film evaporator is composed of a heater, separator, condenser, crystallizer, material conveying pump, operating platform, and control console. The basic development of the material starts from the top of the heater, and the material entering the top cannot follow the liquid distributor in various pipelines, presenting a membrane like downward rapid flow and heating vaporization inside the pipes. The vaporized steam and liquid are led out at the lower end of the heating pipe together, and after gas-liquid separation, a concentrated liquid is obtained.The material heating time of a single effect falling film evaporator is very short, but the heat transfer coefficient is high. The solution evaporator will evaporate for about 5-10 seconds to produce, making it more suitable for heat sensitive materials. It can also handle solutions with high viscosity, but cannot handle easily crystalline materials, which can cause pipeline blockage and accidents.

Single Effect Falling Film Evaporator Vacuum Concentration Equipment Parameters:

Model

SJM1-600

SJM1-800

SJM1-1000

SJM1-1200

SJM1-1600

 Evaporation Capacity(kg/h)

600

800

1000

1200

1600

Product In Concentration % (Made to order)

11.5 ~ 12

Product Out Concentration %(Made to order)

45 ~ 48

Steam Pressure(MPa)

0.6 ~ 0.8

Steam Consumption(kg/h)

420

560

700

840

1100

Evaporating Temperature(℃)

60 (Can be designed according to customer's demand)

Heating Temperature(℃)

70

Sterilization Temperature(℃)

86 ~ 94

Cooling Water Consumption (t/h)

6

8

10

12

16

Electric Total Power (KW)

15.5

15.5

19.5

19.5

19.5

Dimension (L*W*H) m

3.9*2.3*6.5

3.9x2.3x7

3.9x2.4x7.5

3.9x2.4x8

3.9x2.4x8.5
