Spherical Vacuum Evaporator

Name: Spherical Vacuum Evaporator
Rating: 5 (99 reviews)

Product description:

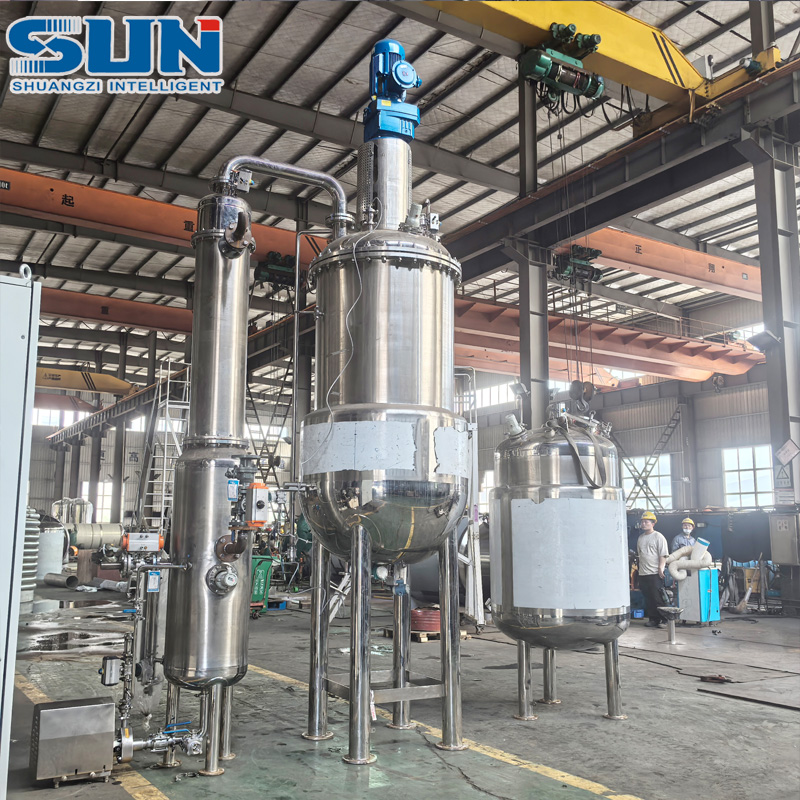

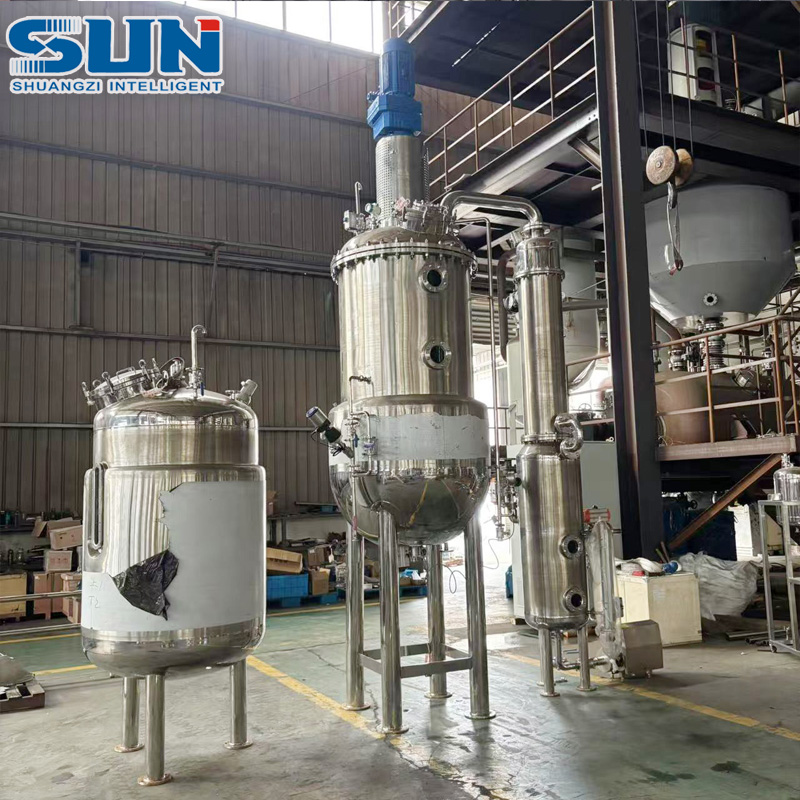

Constructed of 304 stainless steel, the spherical evaporator consists of four core assemblies: spherical main tank, condenser, gas-liquid separator and liquid receiving tank. Steam is fed into the jacket to realize low-temperature vacuum evaporation for vacuum concentration and solvent recovery applications. Featuring a spherical inner shell with large heating area, the unit ensures even liquid circulation and effectively prevents wall adhesion and material coking, making it ideal for concentrating heat-sensitive materials such as TCM extracts, botanical extracts and fruit juice.

Working under low-temperature negative pressure, it completes feed concentration and organic solvent distillation & recovery while fully retaining original flavor and active ingredients of materials. Widely applied in pharmaceutical, health food, natural flavor and fine chemical industries, it performs batch liquid concentration alongside ethanol and other organic solvent recycling to cut production costs. With compact structure, easy cleaning & maintenance and low energy consumption, it serves as a classic general-purpose evaporator for medium & small-scale concentration and solvent recovery.

Items		QN-300	QN-500	QN-700	QN-1000
Evaporation Capacity (kg/h)		70	120	145	195
Volume (L)		300	500	700	1000
Jacket Pressure (Mpa)		0.09
Vacuum Degree (mmHg)		500-620
Heating Area (m²)		1.3	1.6	2	2.8
Condensation Area (m²)		2.4	3	3.5	4
Dimension (mm)	L	1900	2030	2200	2335
	W	1100	1200	1300	1520
	H	2300	2500	2600	2765
