Alcohol Recovery Tower

Alcohol Recovery Tower

Product Description:

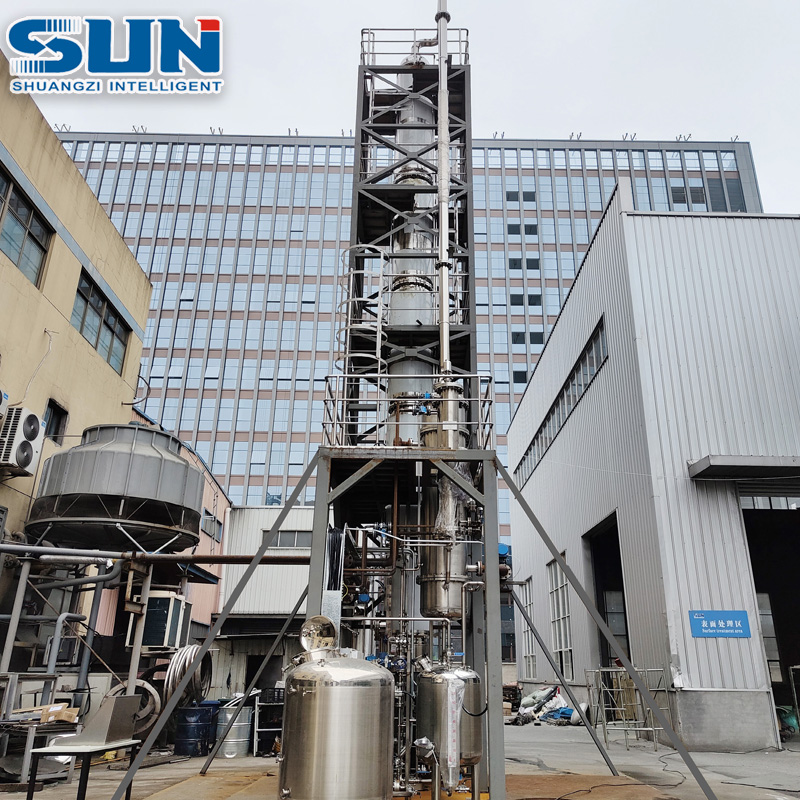

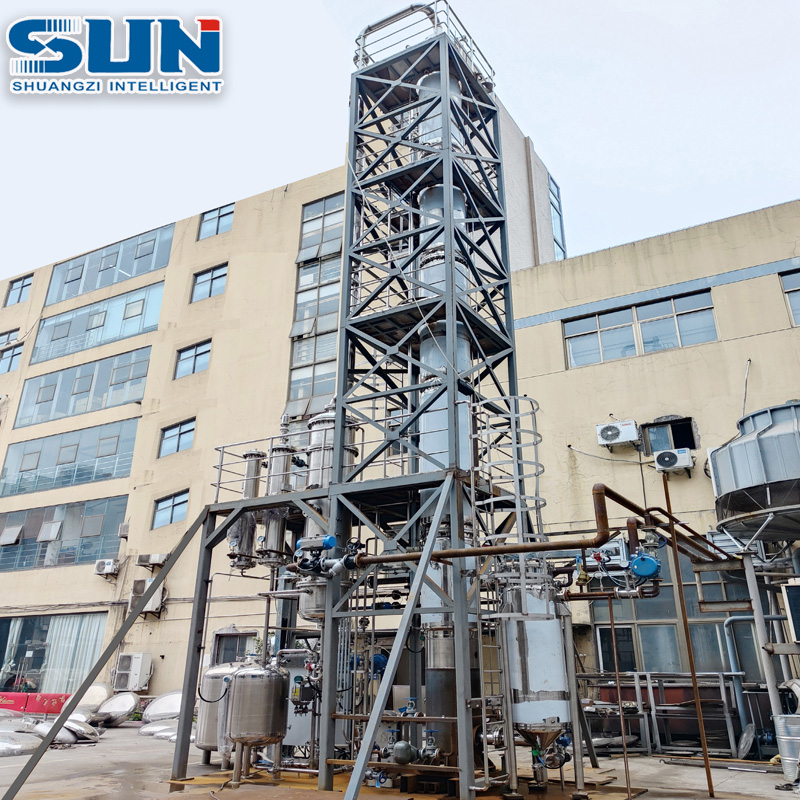

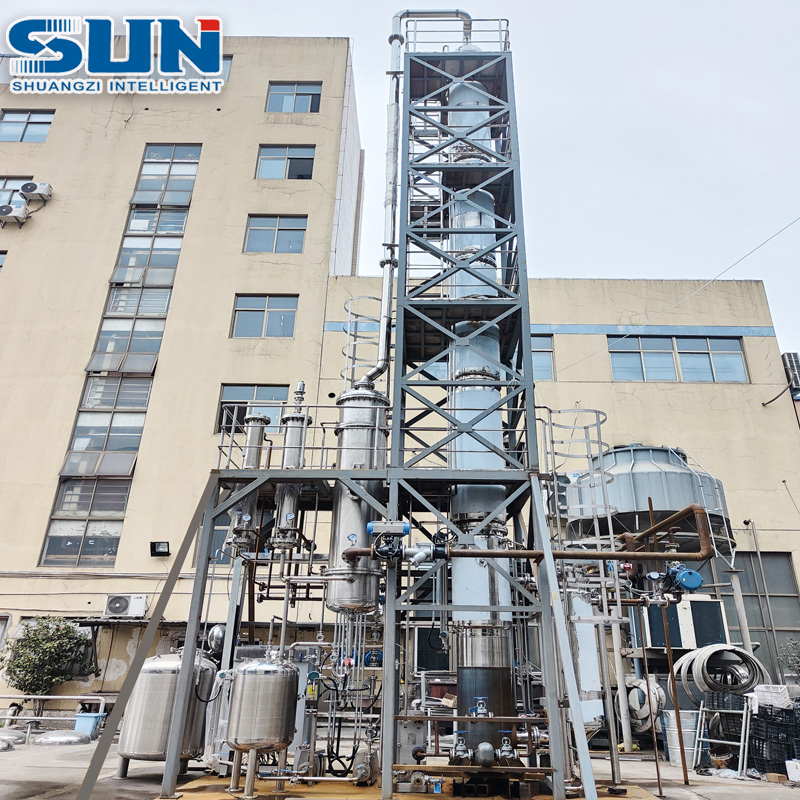

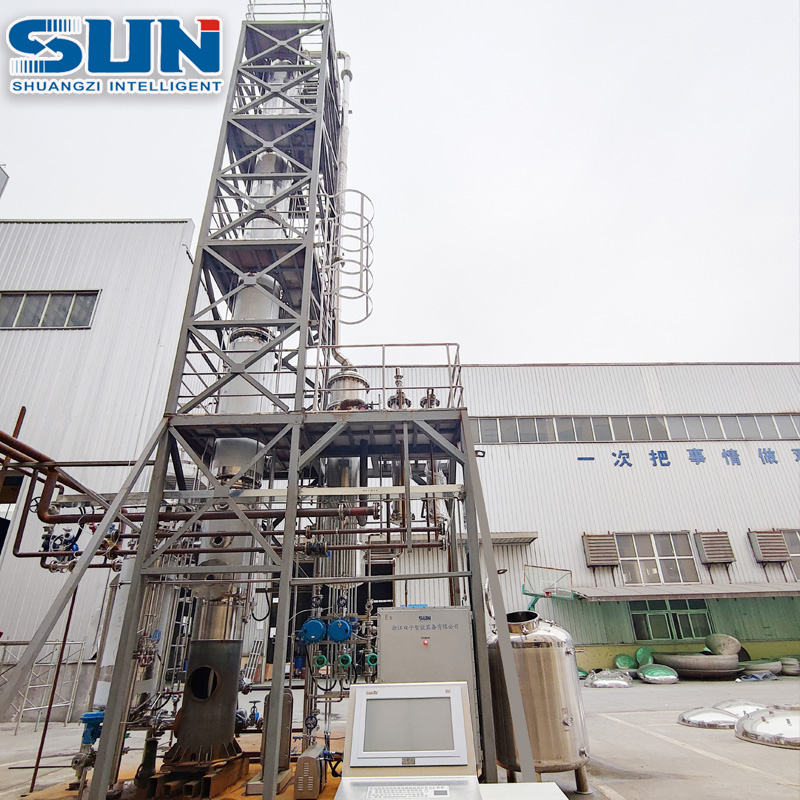

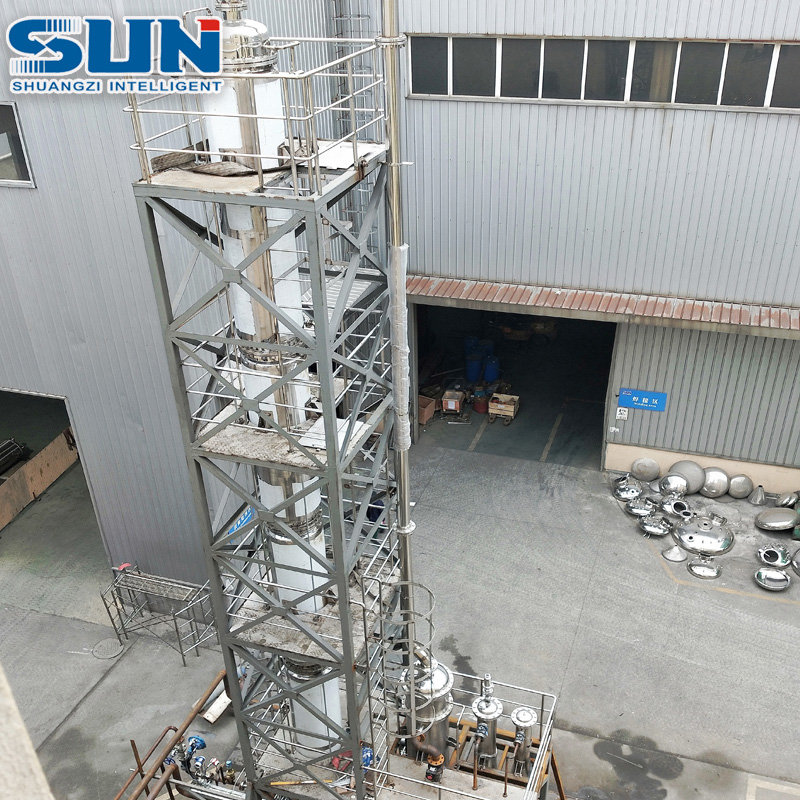

The alcohol recovery tower consists of a distillation kettle, distillation tower, condenser, cooler, and buffer tank. Suitable for the recovery of industrial alcohol in traditional Chinese medicine, Western medicine, glucose, brewing, starch, biopharmaceuticals, chemical, food, dairy and other industries, as well as the distillation of other solvents such as methanol. This device can distill dilute alcohol from 30 ℃ -50 ℃ to 90 ℃ -95 ℃. The requirements for finished alcohol are high, and the reflux ratio can be increased. However, the corresponding output of finished products is reduced, and the residual liquid discharge has an alcohol content of ≤ 3 ℃, which is a good equipment specifically for recovering alcohol.

Working principle:
Using a temperature slightly higher than the boiling point of alcohol, heat and evaporate the dilute alcohol solution that needs to be recovered, and then separate pure alcohol gas through tower distillation, thereby increasing the concentration of the alcohol solution and ultimately achieving the goal of alcohol recovery.

Items

JH-200

JH-300

JH-400

JH-500

JH-600

JH-800

Tower Volume (L)

640

1220

1450

2300

2500

3200

High Position Height (mm)

6000

7000

7000

7000

7500

7500

High Tank Volume (L)

300

400

650

800

1000

1500

Condensation Area (m²)

5

9

11

18

25

45

Cooling Area (m²)

1

1.5

2.2

4

6

8

Heat Exchange Area (m²)

3.0

6.0

6.5

10

15

26

Recovery Capacity (kg/h)

45-50

90-100

150-160

280-300

420-440

600-620

Recovery Concentration (%)

>90

Padding Material Type

 ceramic or stainless steel corrugated padding material

Dimension (L*W*H) mm

2300*700*9300

2600*800*12500

2500*1000*15000

3000*1200*18000

3500*1400*18000

4200*1800*18000
